The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.
Quick Facts:
- Dramatically lowers intake air temp (IAT)
Increases HP while minimizing power-robbing heat soak!

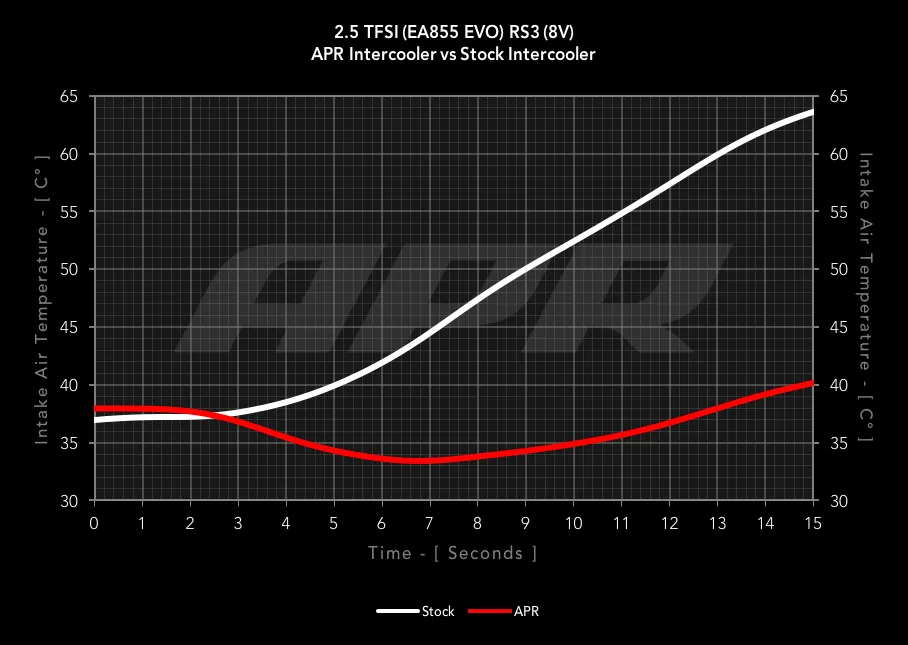

Dynoed 26 AWHP over to the factory system (STG 1 93)!
Effective cooling for more than double factory horsepower levels! - Massive frontal surface area and core volume
6.38′ x 25.33′ x 3.16′ – 161.6 in² frnt. & 510.67 in³ volume – OEM
11.7′ x 22.00′ x 3.50′ – 257.4 in² frnt. & 900.90 in³ volume – APR - Highly effective core design
Bar-and-plate core with staggered and louvered fins.
Rigorous testing determined core style, fin density, and size.
Low pressure drop + highly effective cooling = high performance! - Smooth cast end tanks
Engineered for low turbulence/restriction and maximum flow.
Organically shaped to promote airflow across entire core.
Pressure tested to prevent power robbing boost leaks. - Easy to install
Simple plug-and-play design with no trimming or drilling necessary! - Designed by engineers with lasers
With the best equipment and smartest engineers, it just works!
